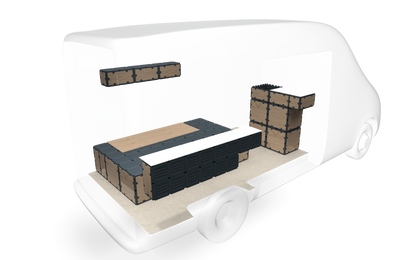

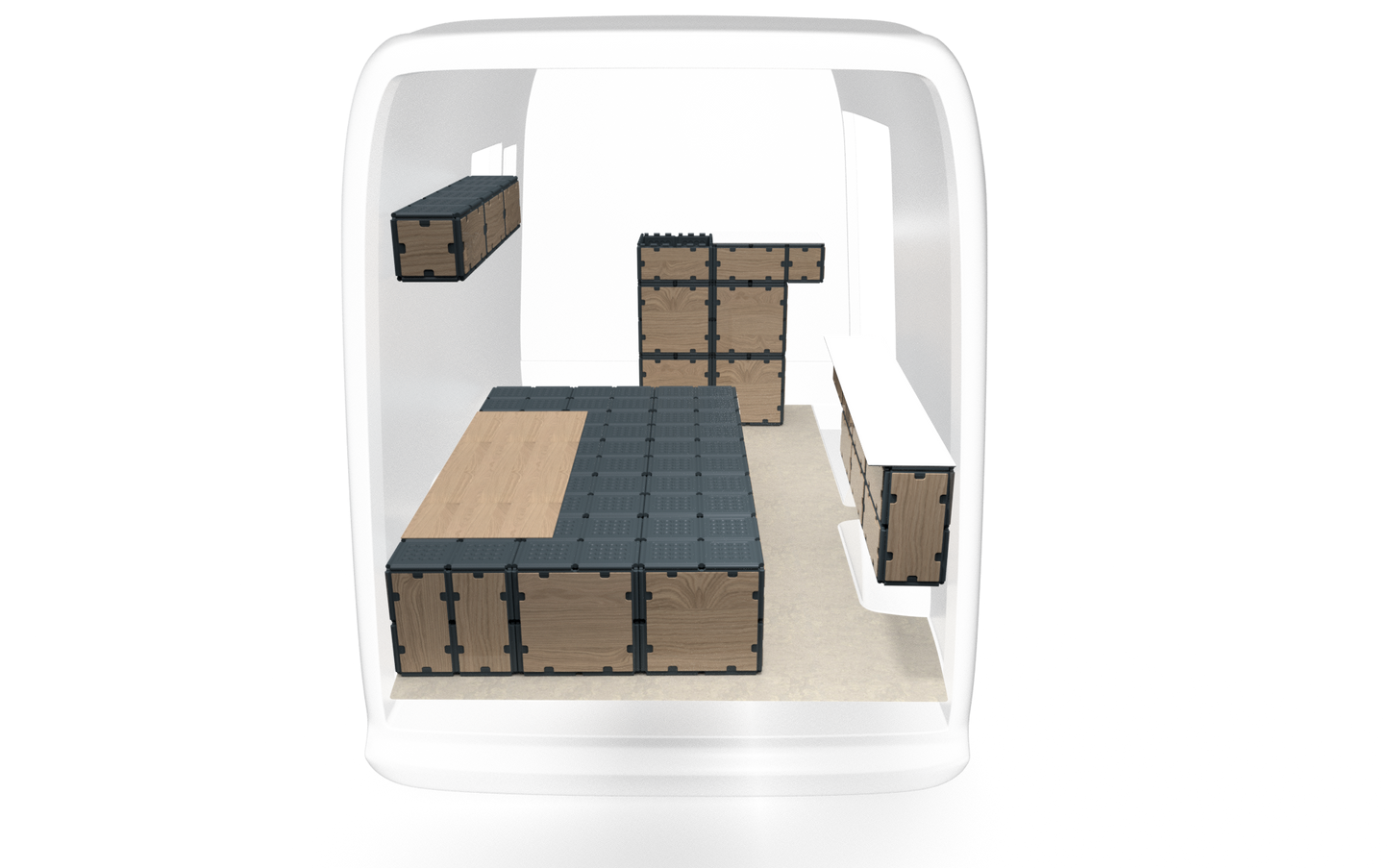

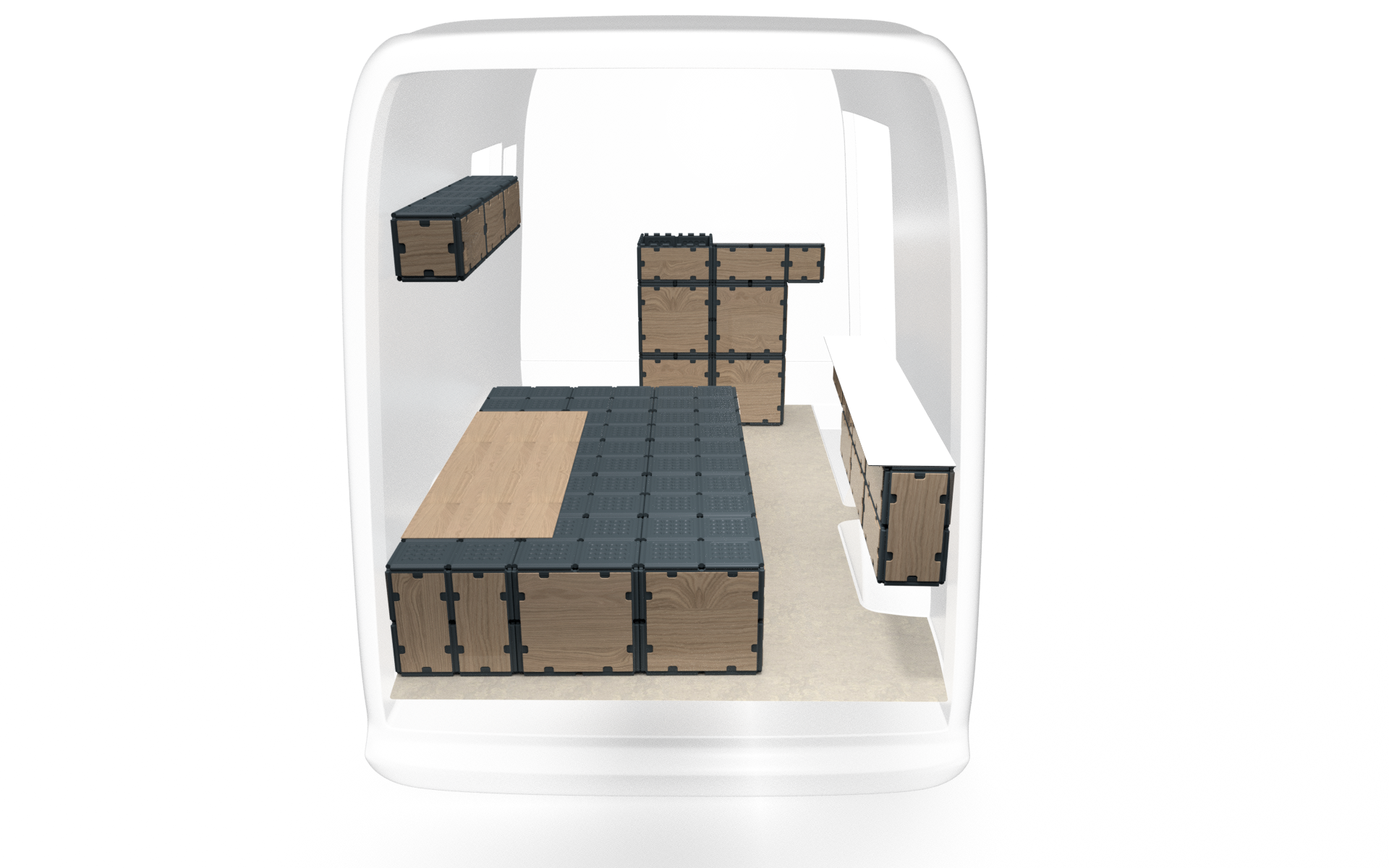

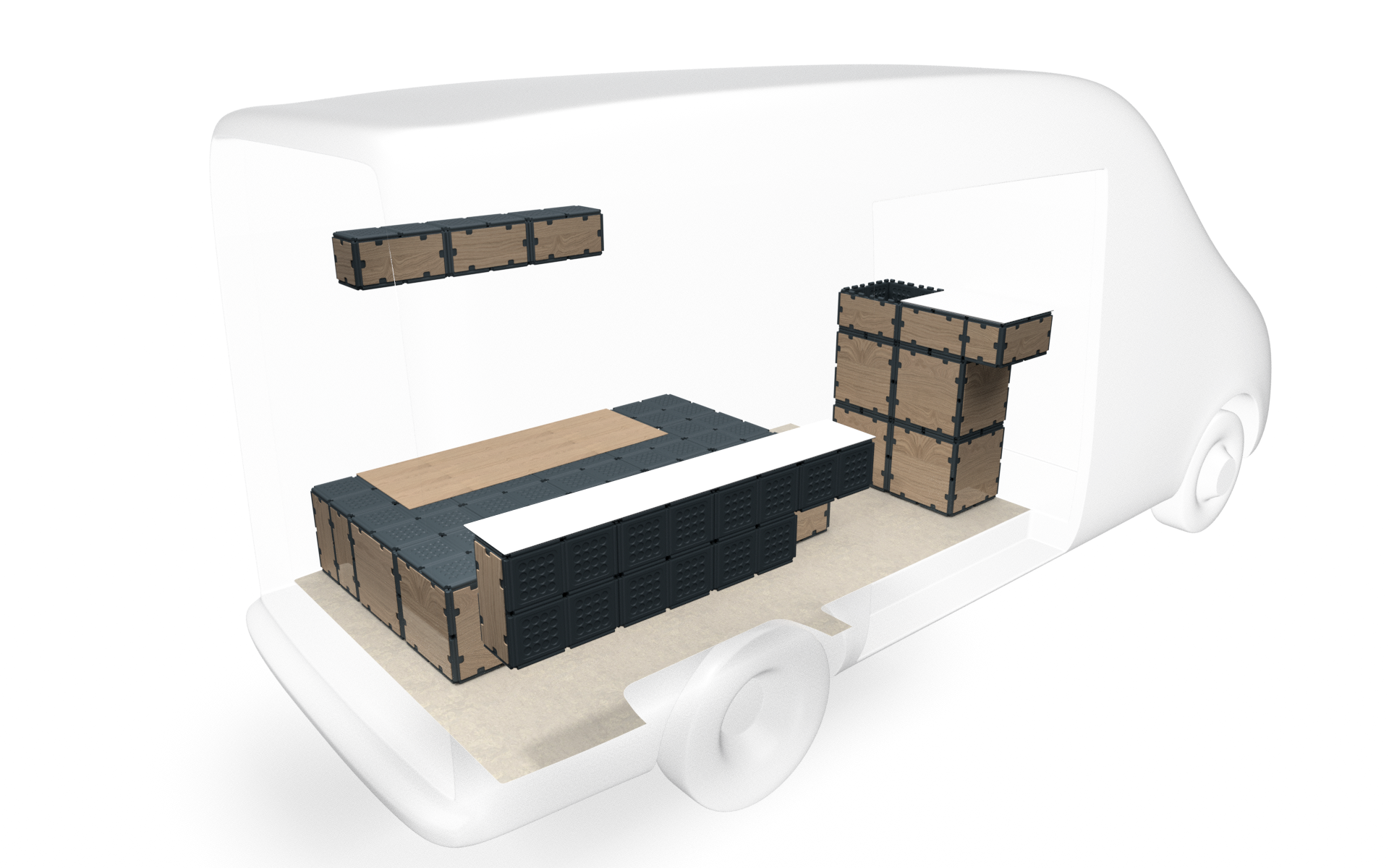

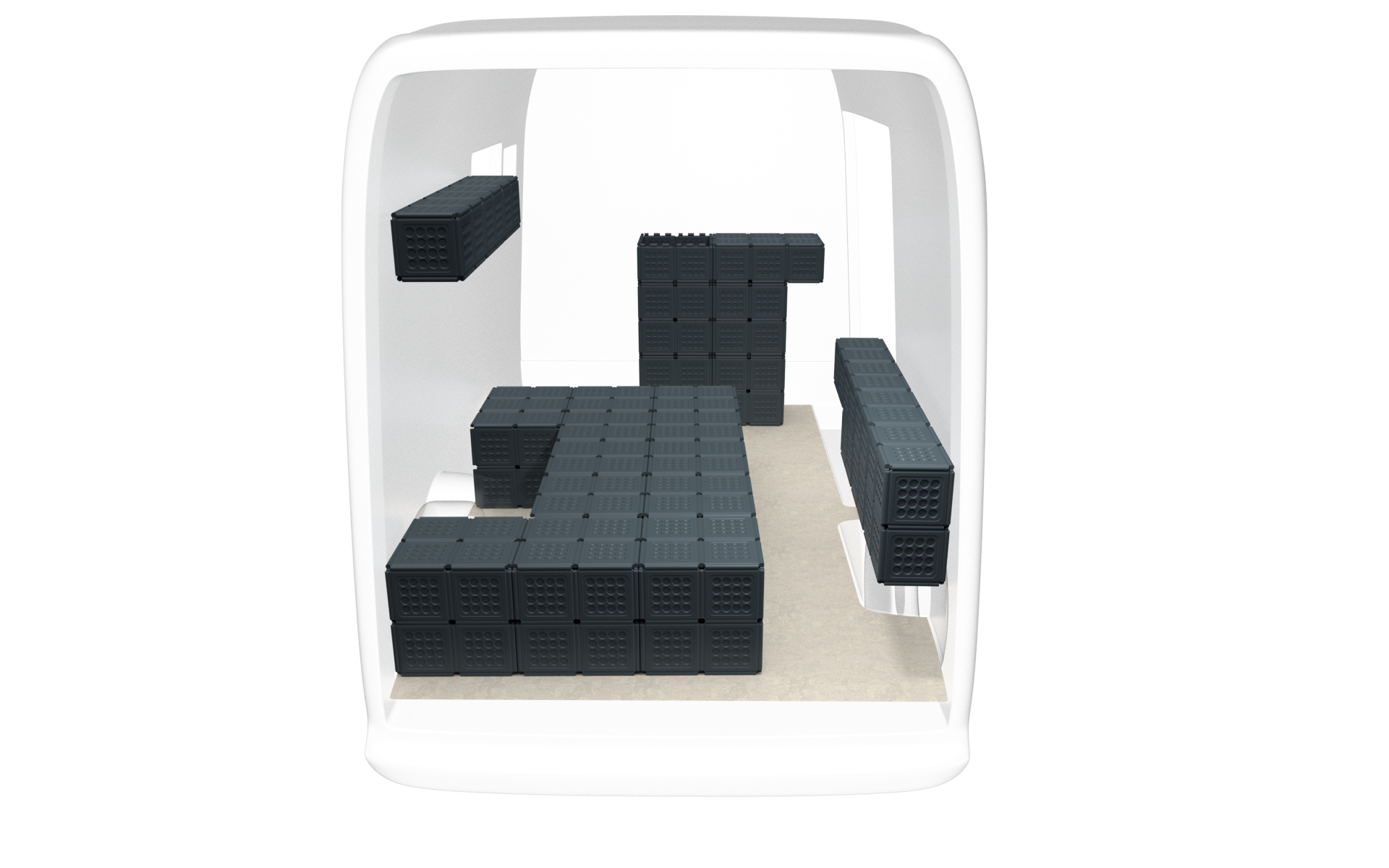

This is a suggestion for the layout in the vehicle category van and light commercial vehicle (e.g. Sprinter, Crafter, etc.). The arrangement and size of the furniture must be adapted depending on the make, model and equipment.
Caution!
Please note that the furniture must be secured at suitable fastening points (airline rail, lashing points, etc.).
As we do not know exactly how your vehicle is equipped, we cannot guarantee that this suggestion will fit exactly in your vehicle and can be fastened.

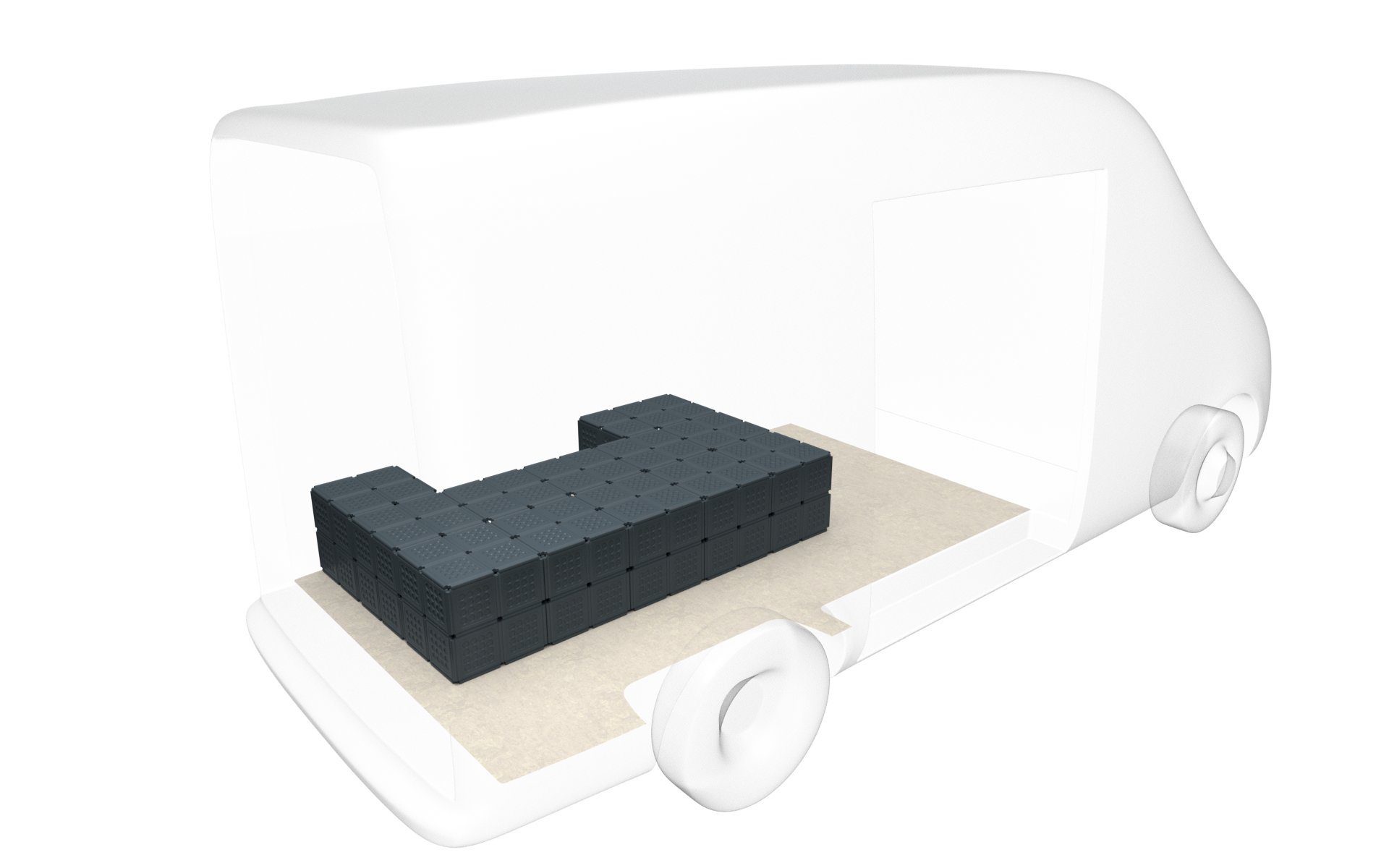

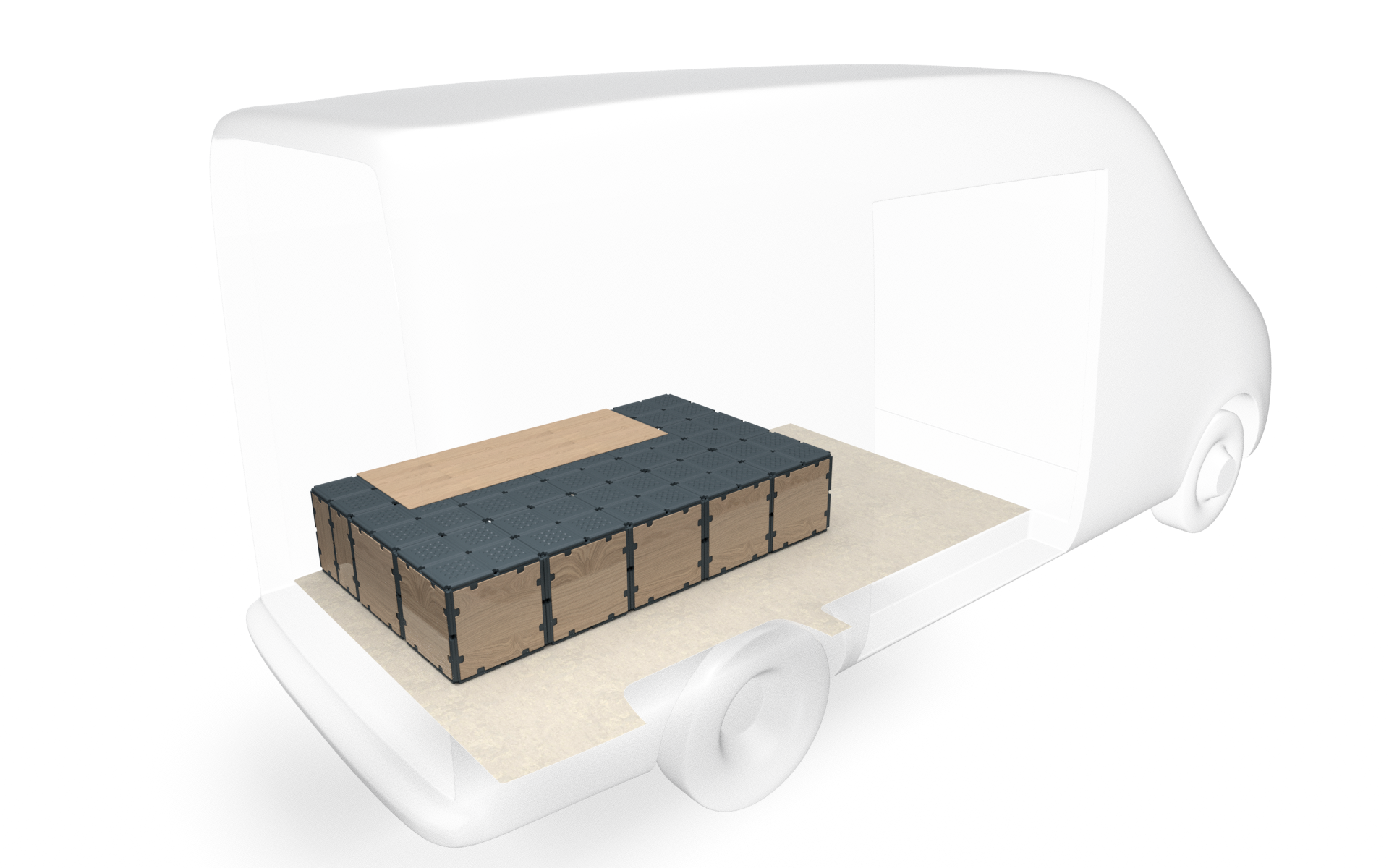

Bed
304 panels
132 connectors, 66 screws with nuts
10 decorative elements 2 x 2
2 decorative elements 1 x 2
Recommendation: We recommend a thin cover plate to cover the wheel arch [currently being planned in our store].

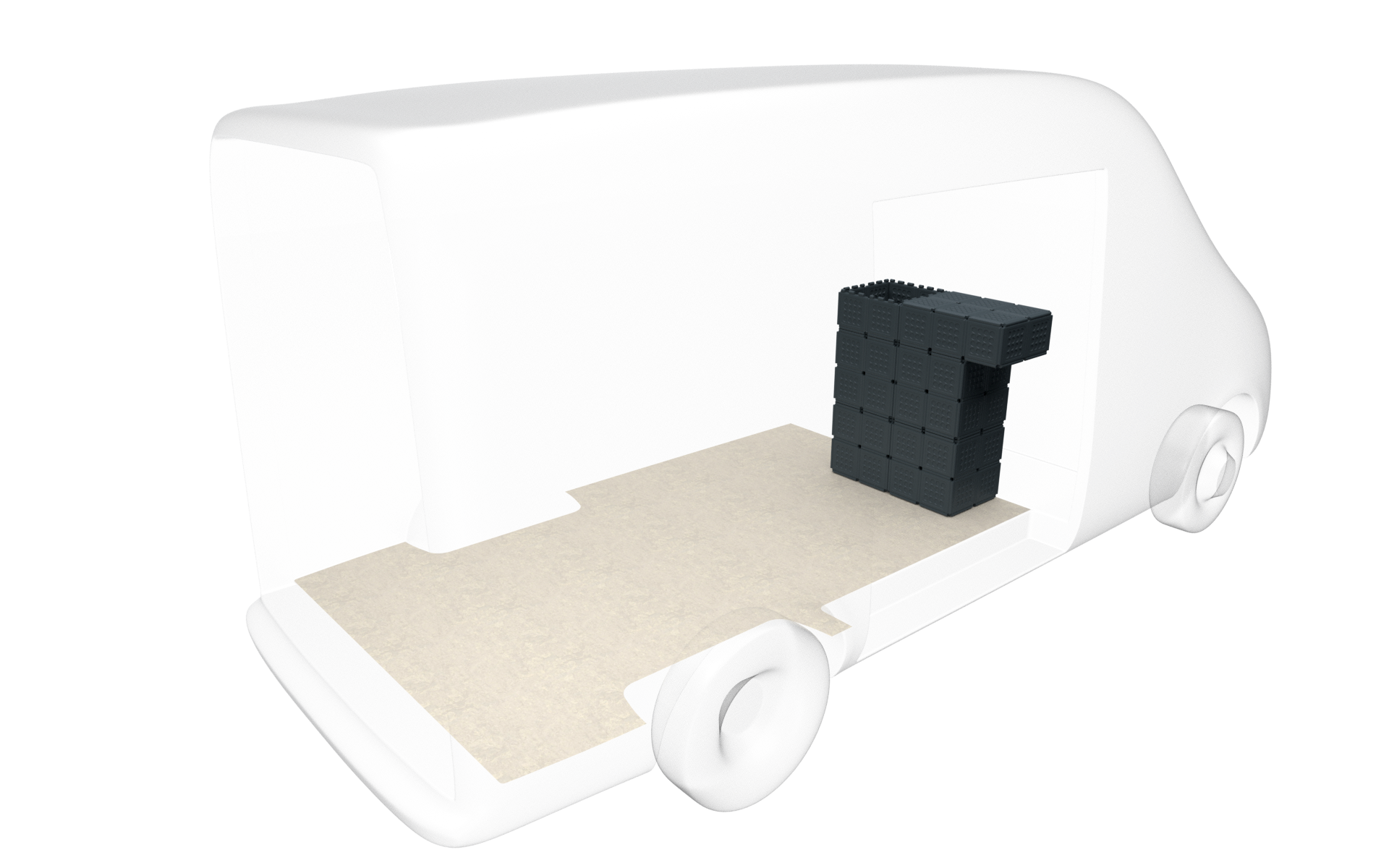

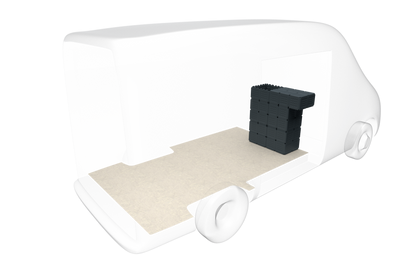

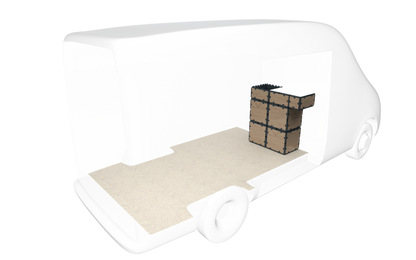

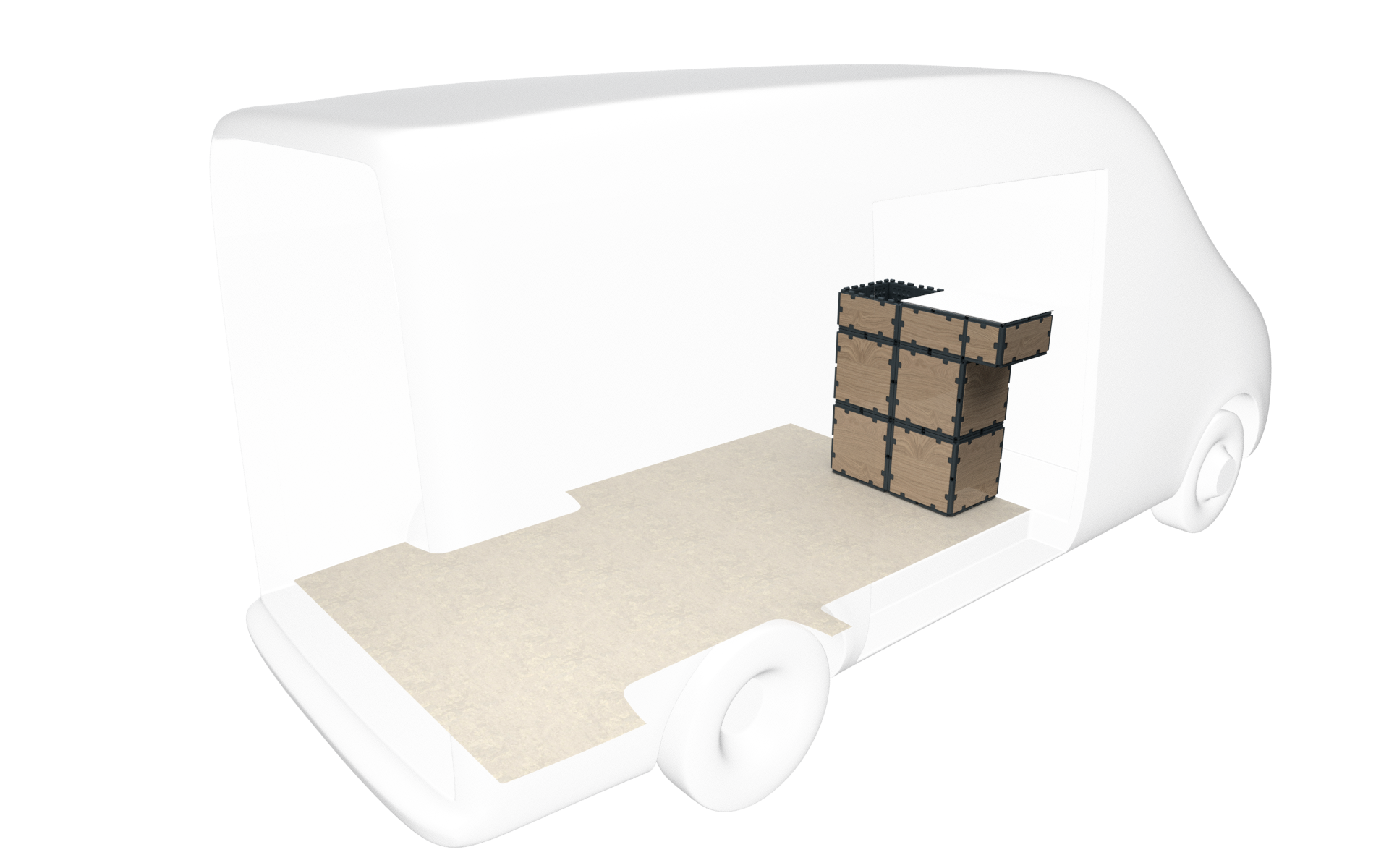

Kitchen
130 panels
56 connectors, 28 screws with nuts
8 decorative elements 2 x 2
4 decorative elements 1 x 2
1 decorative element 1 x 1
Recommendation: To be able to use the kitchen properly, we recommend the use of a thin cover plate as a worktop [currently in planning in our store].
Highboard
30 panels
8 connectors, 4 screws with nuts
3 decorative elements 1 x 2
2 decorative elements 1 x 1

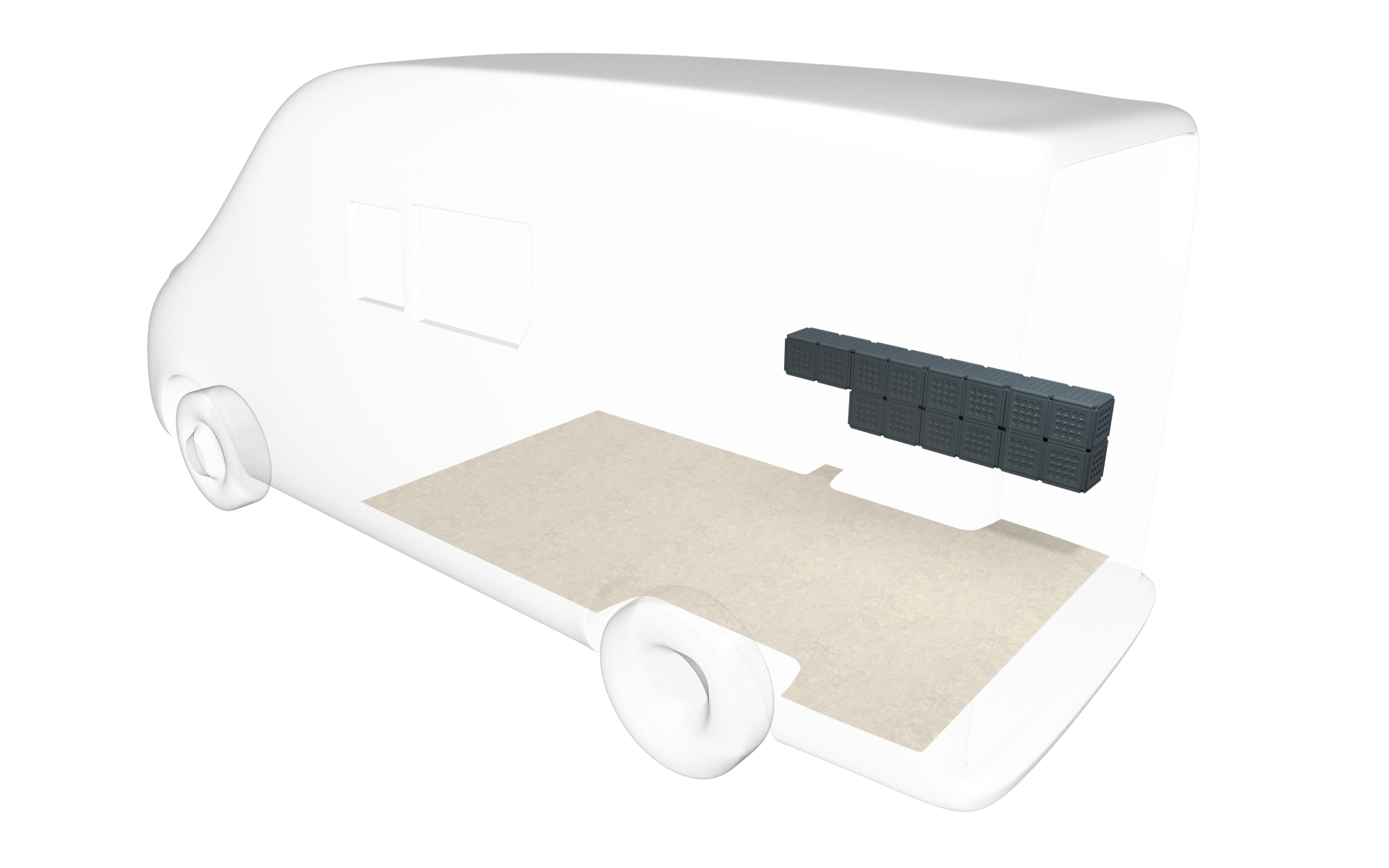

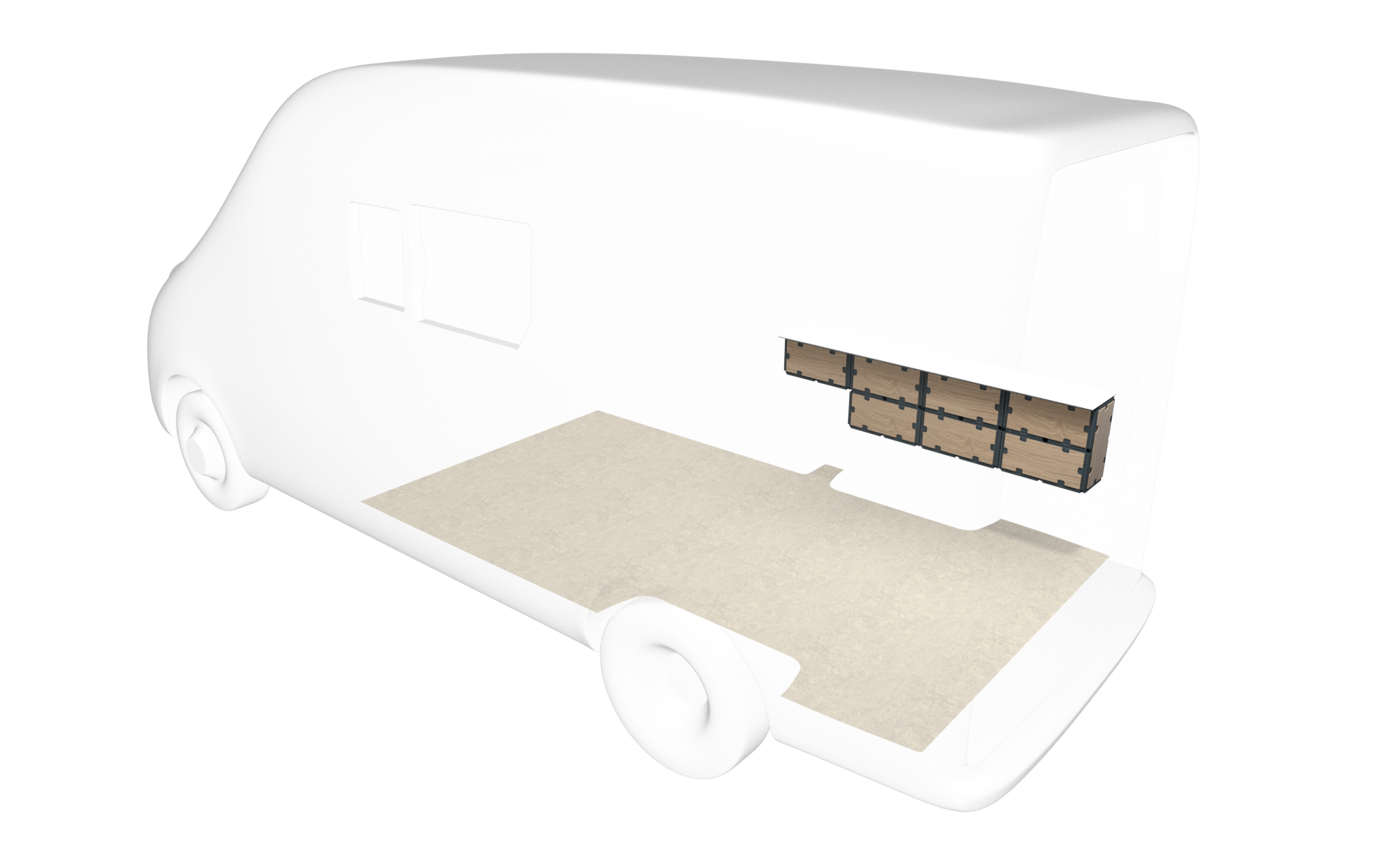

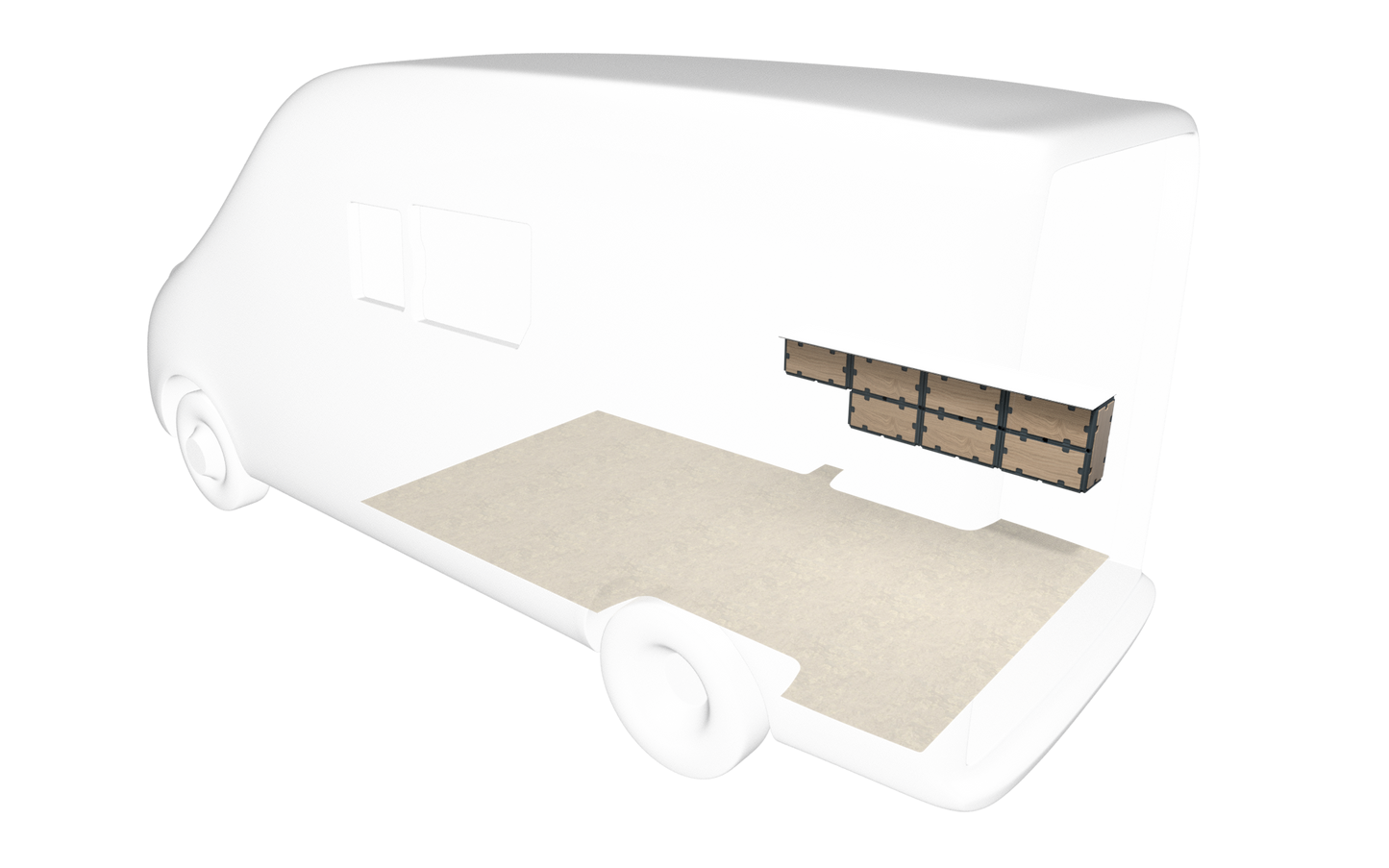

Sideboard
58 panels
20 connectors, 10 screws with nuts
8 decorative elements 1 x 2
1 decorative element 1 x 1
Recommendation: In order to be able to use the sideboard properly, we recommend the use of a top panel [currently being planned in our store].
-----------------------------------------

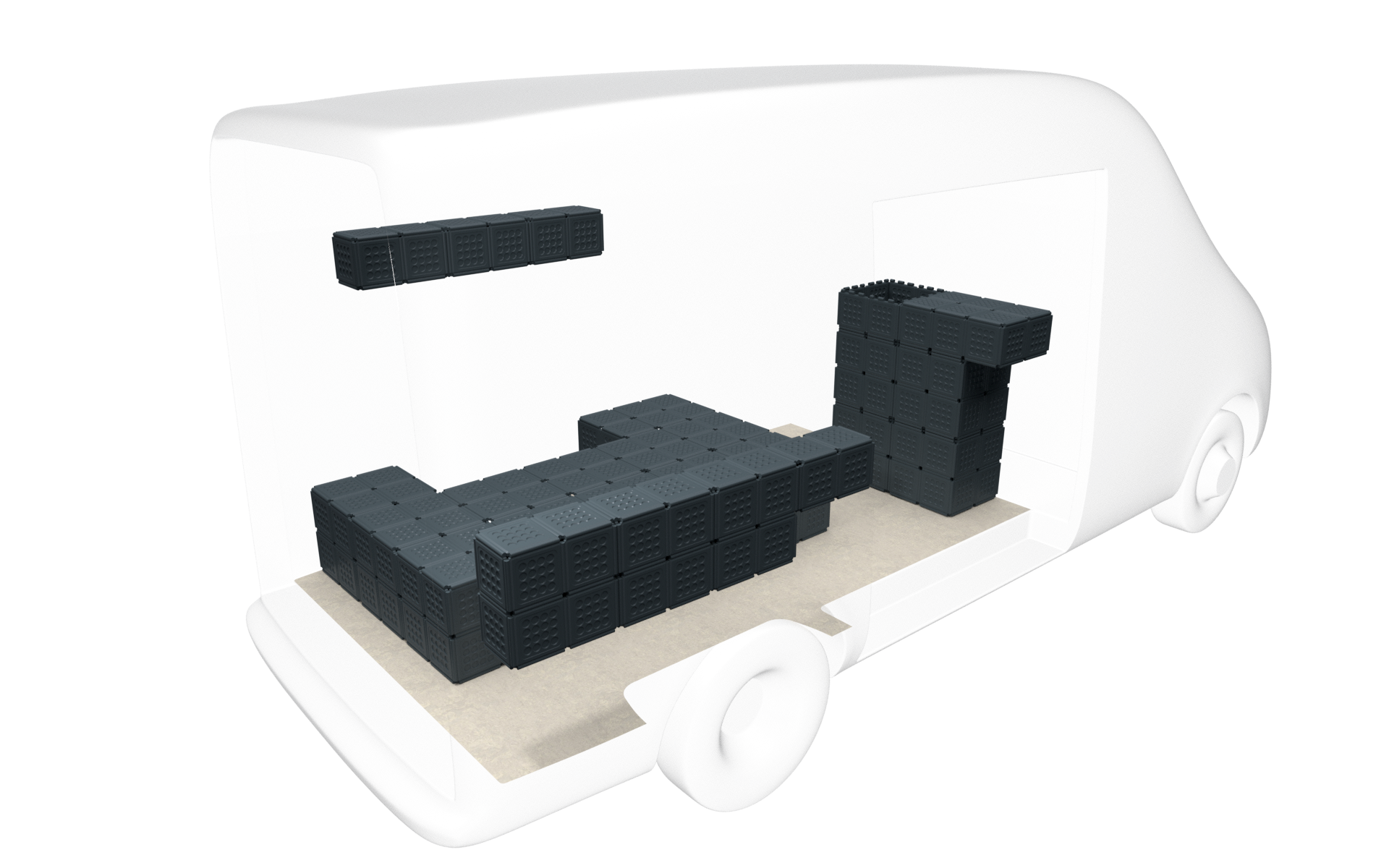

Total amount of panels
522 panels
216 connectors, 108 screws with nuts
18 decorative elements 2 x 2
17 decorative elements 1 x 2
4 decorative elements 1 x 1
